Setup panel
The setup menu opens after clicking the Settings button.

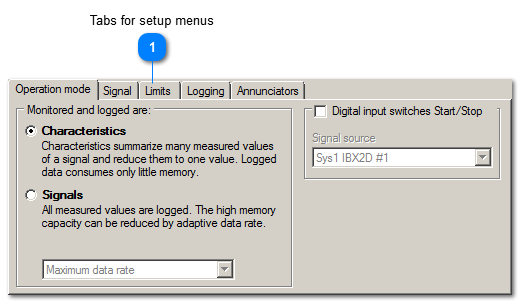

Tabs for setup menus
Operation mode
Choose between characteristics or signals
Signal
Signal settings
Limits
Limit values for recording
Logging
Settings for record length and stop conditions
Annunciators
Settings for external alarm devices
