PC Vibration Measurement System VibroMetra

Evaluation settings


Hand-arm vibration is usually not measured for a whole work shift but for representative intervals and works steps. To improve accuracy measurements can be repeated several times for averaging. However, VM-HAND can already display an estimated daily exposure value during measurement.  The daily exposure time can be entered.

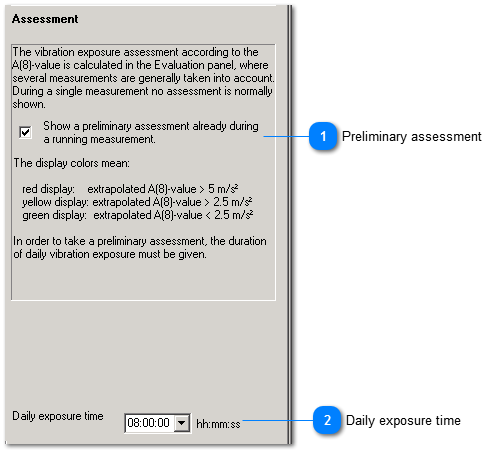

Evaluation settings
1

Preliminary assessment


1. Preliminary assessment

Allows evaluation and color change of the measuring result already during the measurement. This feature is only available for triaxial measurements.
2

Daily exposure time


2. Daily exposure time

This is the exposure time per day by the currently measured activity needed for preliminary A(8) calculation.
