Bearing database

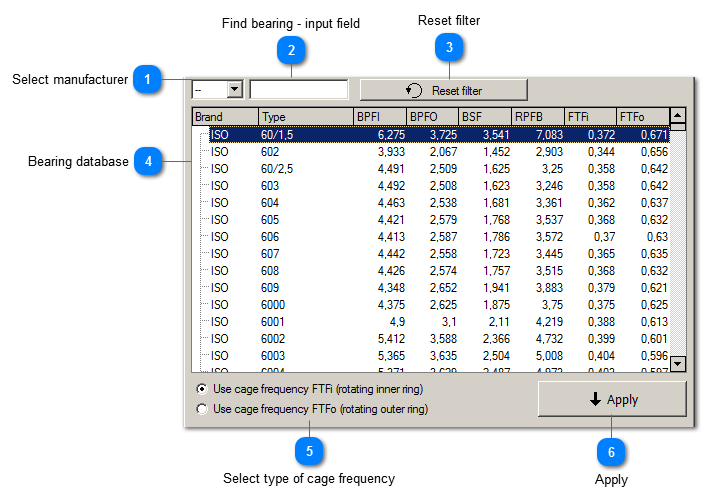

Bearing database
1

Select manufacturer


1. Select manufacturer
The bearing database can be filtered by manufacturer shortcuts. Thereby, bearings of a certain brand can be displayed quickly.
2

Find bearing - input field


The input field allows searching for bearing types. The results of the search are displayed in real time.
3

Reset filter


3. Reset filter
Resets the manufacturer selection and deletes the current search query.
4

Bearing database


4. Bearing database

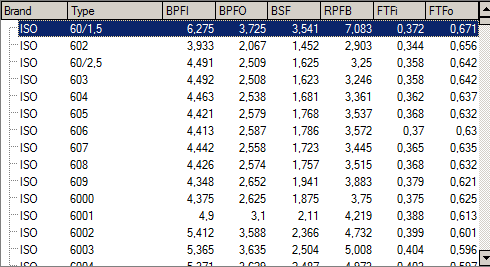

The bearing database includes more than 25,000 entries of bearing types of different manufacturers. Apart from the brand and the type of bearing, the damage frequencies of each bearing are displayed.
5

Select type of cage frequency


5. Select type of cage frequency
Before applying it into the bearing table it can be selected if the bearing type is used with rotating inner ring or outer ring.
6

Apply


6. Apply
Applies the selected bearing in the bearing table.
