PC Vibration Measurement System VibroMetra

Placeholders

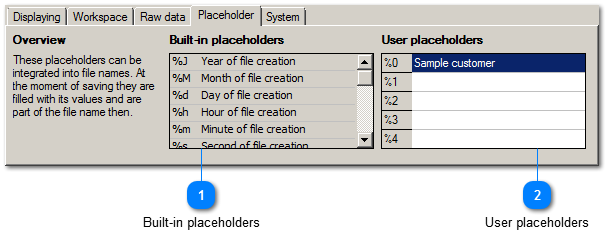

Placeholders can be integrated into file names, which are used in different instruments of the VibroMetra system (example). Additional to fixed built-in placeholders you can also enter 5 individual ones. At the moment the file is saved the placeholders are filled with their current values and are part of the file name then.

Placeholders
1

Built-in placeholders


1. Built-in placeholders
These placeholders are already intergrated in VibroMetra. They are listed up again for explanation.
2

User placeholders


2. User placeholders
You can enter individual values for the placeholders %0 .. %4.
